Flangeless Waterguard Channel Corner Pieces

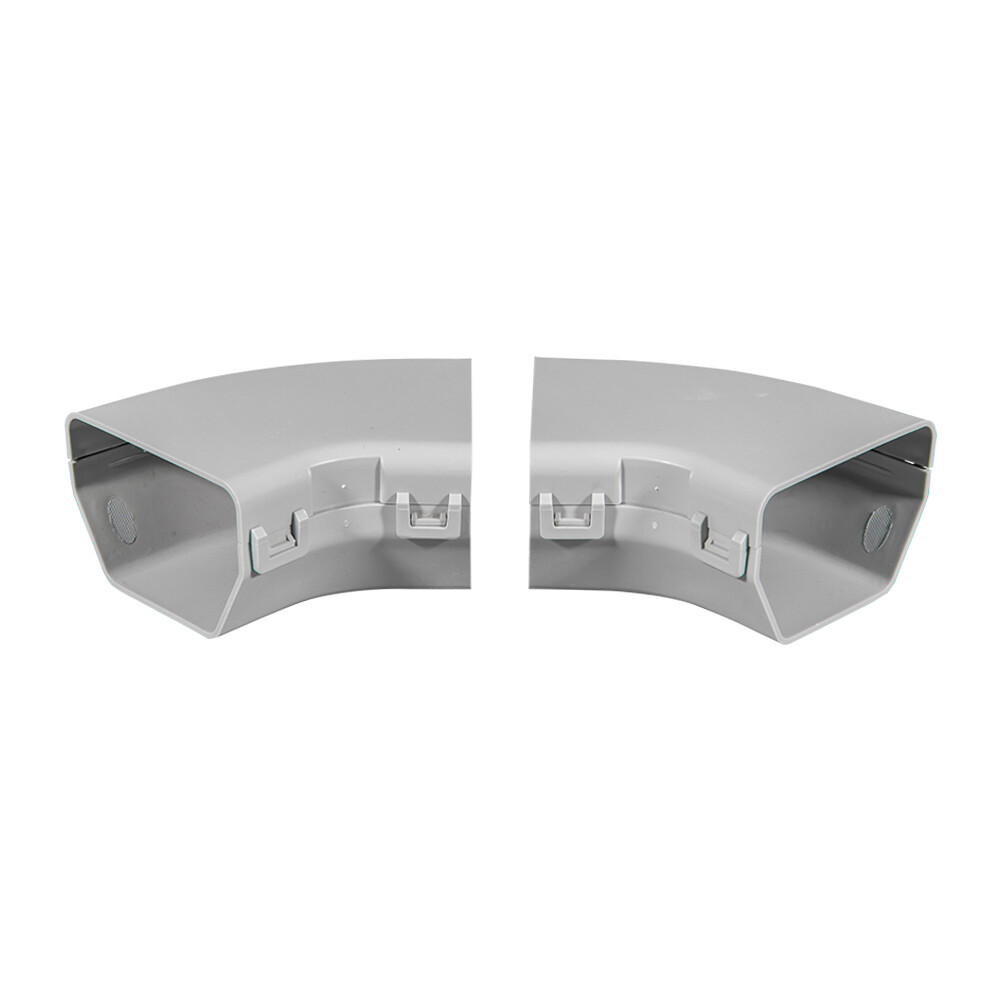

This listing is for a pair of Curved 45 degree corners for the Flangeless Waterguard Channel, they may be used together to make one 90 degree corner or singly as two individual 45 degree corners.

The price is per pair of 45 degree corner pieces.

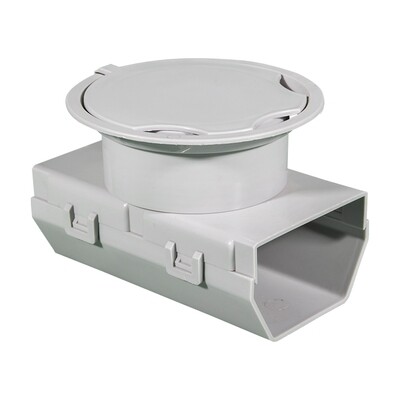

They are reversible so you can create inside and outside 45 degree or 90 degree corners from this one item. They can also be installed with an inspection port between them as shown in the illustration below which is taken just prior to concreteing in.

This detail provides the following advantages: -

1. Easier bend for water to flow around

2. the inspection ort can access two runs of channel at 90 degrees to each other

3. The lid for the port is proud of the wall and so is not obscured if you are to finish the basement, whereas stsraight in-line ports will be under the sheetrock when the basement is finished.

The channel lengths slide telescopically into the corner pieces (as they do into the drain outlet) which makes installatio even easier! If you do not want an inspectin port in the corner, just use a short piece of channel inbetween the two 45 degree corner pieces.

If you heed assistance in working out the details call us or schedule an onliine appointment (see our contact details at the bottom of the home page).
